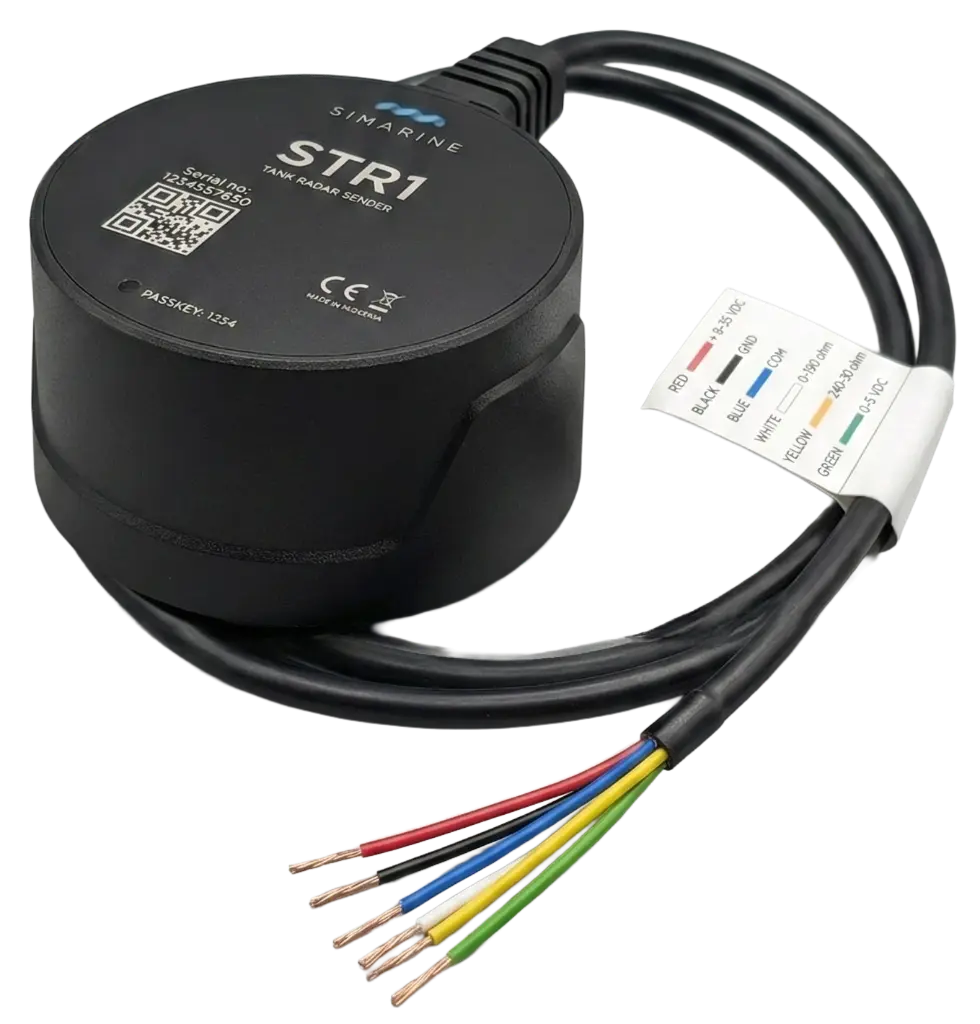

Simarine Radar Tank Level Sender - analogue

Radar Tank Level Sender measures liquid levels in plastic tanks from 150 to 2000 mm using high-precision radar.

The STR1 analogue sensor outputs multiple signals at the same time: resistance 0–180 Ω, 240–30 Ω, 0–5 V voltage, and Bluetooth via the Simarine App.

Voltage range: 8 - 30 VDC
Power consumption at 12 V: ​20 mA
Supported tank dimensions
Min. Tank Height: 150 mm
Max. tank Height: 2000 mm
outputs analog
Output 1: 0 - 190 ohm
Output 2: 240 - 30 ohm
Output 3: 0 - 5 VDC
RADAR DIMENSIONS
Diameter: 62 mm
Height: 32 mm

Internal Reference: STR1
Gross price incl. VAT: € 84,00
